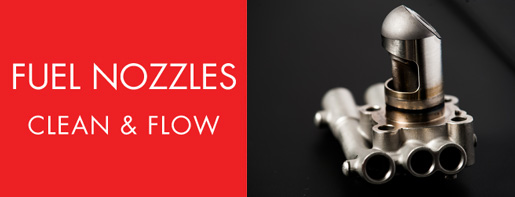

Fuel Nozzles

PW 100 Series Fuel Nozzle Clean & Flow

WE FOLLOW OEM AND FAA GUIDELINES AND PROCEDURES. We Use the
Most Current Technical Manuals and Provide You with Certified Flowcharts.
WE PROVIDE FAST 3-DAY TURNAROUND to Reduce Aircraft-on-Ground (AOG)
Time, and We Do It Without Sacrificing Quality of Service.

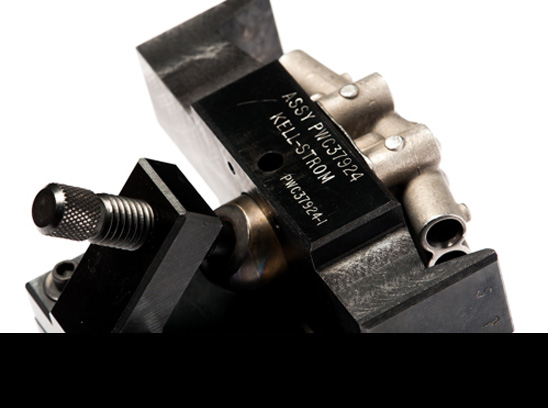

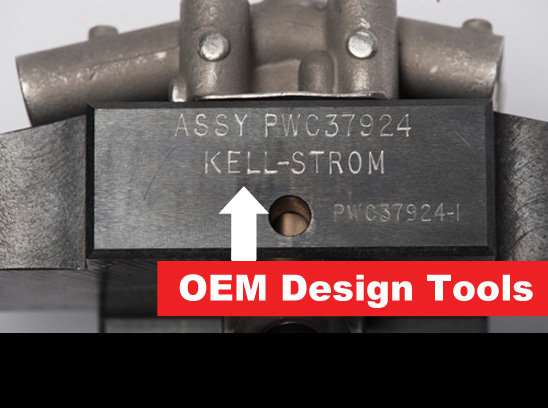

EXPERIENCED TECHNICIANS EQUIPPED WITH OEM DESIGNTOOLS. We
use the Required Pratt & Whitney / Kell-Strom Design Tools for PW 100
Series Maintenance.
HIGH-PRESSURE LEAK TESTING. The Pratt & Whitney / Kell-Strom Leak Test
Fixture for High-Pressure Leak Testing.

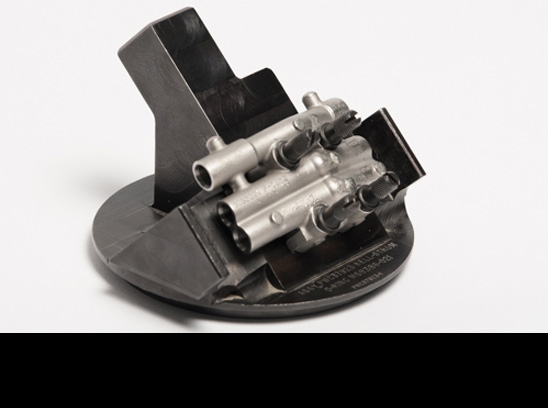

NOZZLE FLOW TESTING. A PW 100 Series Fuel Nozzle Installed in the Pratt &
Whitney / Kell-Strom Flow Test Fixture.
FUEL ATOMIZATION SPRAY TESTING. The Pratt & Whitney / Kell-Strom Nozzle
Spray Face Tool Fixture is Used to Check the Quality of Fuel Atomization Spray.
NDI: NON-DESTRUCTIVE INSPECTION. Fluorescent Dye Penetrant is Used in
the NDI Inspection of the Required Area to Identify Possible Cracks in Material.

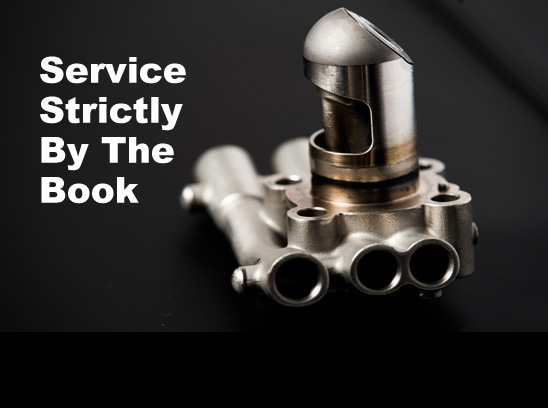

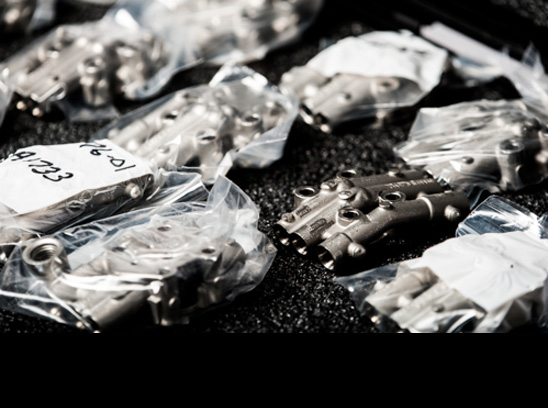

PACKAGED BY THE BOOK. After Service, Recertified Nozzles are Packaged
Individually As Specified in P&W’s OEM Maintenance Book.

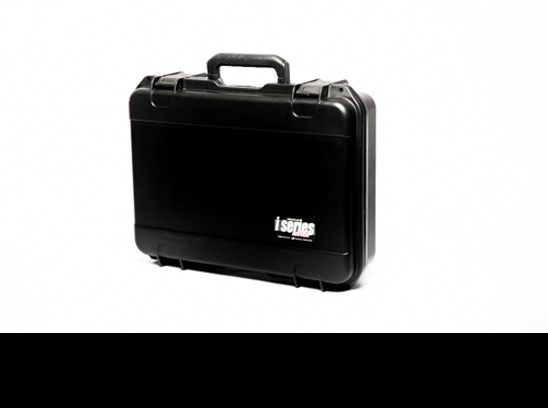

IN-TRANSIT PROTECTION. Your Nozzle Set is Carefully Packed and Shipped
in a Durable, Specially Designed Briefcase-Size Container.
FAA Certified Part 145 Repair
Accessory Class 1 - 2

instruments_header

20+ Years of Experience in Fuel Nozzle Maintenance, Repair, and Re-Certification

U.S. Aerospace Corp. is a FAA Certified 145 Repair Station with an Accessory Class 1-2 unlimited rating and more than 20 years of fuel nozzle MRO experience. We have the capabilities, expertise and advanced equipment required to provide “clean & flow” service, repair and/or overhaul of Pratt & Whitney PW 100 Series fuel nozzles to help:

  • Optimize Fuel Consumption
  • Maximize Engine Efficiency
  • Enhance Engine Life Span
  • Improve Reliability
  • Reduce Wear and Tear of High-Cost Parts

$950 Per Set for Clean & Flow, Including Non-Destructive Testing

Our fuel nozzle “clean & flow” service includes disassembly, cleaning, inspection, and assembly. Additionally, our end-to-end process includes non-destructive testing to assure the highest level of quality, safety, and reliability. Our experienced and highly-trained technicians are equipped with the official P&W/Kell-Strom design tools and the most current technical manuals. Additionally, we provide customized, non-destructible shipping cases to help reduce the risk of damage while your nozzles are in transit.

3-Day Turnaround | Top Quality Assurance from Start to Finish

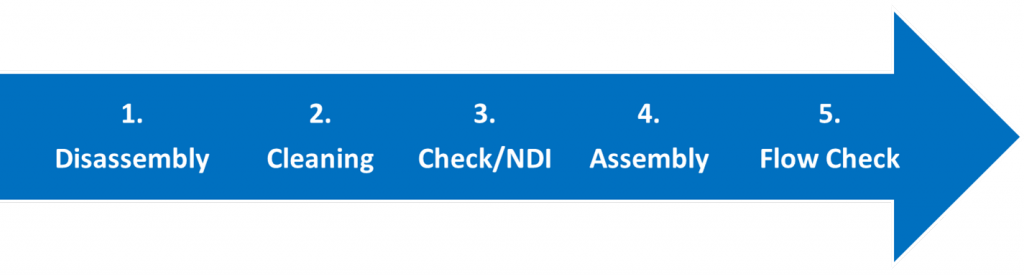

nozzle process

We Follow the Rigorous OEM Process for Re-Certification

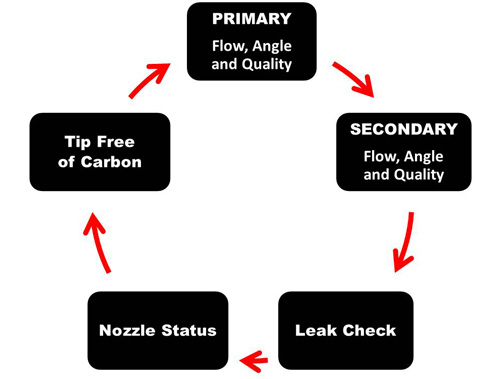

nozzle circle of life



Pratt & Whitney PW 100 Series Fuel Nozzle Capabilities
A Representative List of Part Numbers of Fuel Nozzles Supported
01R3043981-01 02R3053915-01 3037383 3039741 3045781-01
01R3043982-01 02R3053916-01 3037384 3039742 3045783-01
01R3049418-01 02R3053917-01 3037385 3039743 3045786-01
01R3049748-01 02R3053918-01 3037422 3039744 3045788-01
01R3049749-01 03R3053895-01 3037423 3039745 3049418-01
01R3049750-01 03R3053907-01 3037425 3039746 3049748-01
01R3053903-01 03R3053908-01 3037426 3039971 3049749-01
01R3053906-01 03R3053909-01 3038098 3039975 3049750-01
01R3053910-01 03R3053912-01 3038099 3040142 3053895-01
01R3053913-01 03R3053915-01 3038103 3040143 3053903-01
01R3053914-01 03R3053916-01 3038104 3040144 3053906-01
01R3053918-01 03R3053917-01 3038105 3040145 3053907-01
02R3043981-01 3034205 3038106 3040146 3053908-01
02R3043982-01 3034208 3038108 3043978-01 3053909-01
02R3045669 3034215 3038109 3043979-01 3053910-01
02R3049418-01 3034219 3038117 3043980-01 3053912-01
02R3049748-01 3034222 3038118 3043981-01 3053913-01
02R3049749-01 3034225 3038699 3043982-01 3053914-01
02R3049750-01 3034729 3038703 3045307 3053915-01
02R3053895-01 3034731 3038704 3045667 3053916-01
02R3053903-01 3034733 3038705 3045668 3053917-01
02R3053906-01 3035048 3038706 3045669 3053918-01
02R3053907-01 3035049 3038707 3045670 3059754-01
02R3053908-01 3035056 3038825 3045672 3059757-01
02R3053909-01 3035057 3038826 3045673 3059760-01
02R3053910-01 3037380 3038827 3045692 3079012-01
02R3053912-01 3037381 3039719 3045776-01 3079013-01
02R3053913-01 3037382 3039720 3045778-01 3079014-01
02R3053914-01



If your fuel nozzle part number is not shown in the list above, call us at 731-645-9988 or use our convenient online RFQ form.
